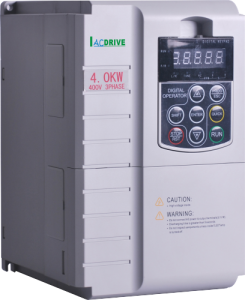

I5100-PV Solar pump inverter is positioned in environmental-friendly and economical PV market, the product is applied to PV pump system, replaces water storage with electric storage and needs no battery modules.
Product Advantages: The direct current generated by solar modules is input to the inverter and then converted into the alternating current to drive various pumps .The output frequency is adjustable in real time according to sunlight intensity change.
Application: Agriculture, forestry irrigation, desert control, grassland animal husbandry, municipal water.
The features of the I5100-PV solar pump inverter for PV Pump are as follows:
Maximizing power generation efficiency of solar modules with the use of advanced MPPT control technology;
1.Adjusting water outflow of pumps quickly on basis of sunlight intensity change;
2.Automatic hibernation and wakeup;
(1) Hibernate at high water level and wake up at low water level;(2) Hibernate at sunrise and sunset and wake up at strong sunlight.4.Under load protection and fault protection of water level sensor avoiding pumping off after water supply dries up ;5.TI DSP technology and Infineon PIM design, with functions of over current, overvoltage and over temperature protection, built-in C3 filter, achieving reliable, automatic and unattended running.
I5100-solar-pump-inverter-system

I5100-solar-pump-inverter-system

                        Specification:

Max DC input 800VDC
Recommended MPPT voltage range 350~750VDC
Recommended input voltage 513VDC
MPPT efficiency 99.9%
Input channel 1
Rated output voltage 3-phase  380VAC
Output frequency range 0~60Hz
Max efficiency of the machine 97
Ambient temperature range (G-type inverter with water pump)
Cooling method Air cooling
Protection degree IP20
Altitude Below 1000m; above 1000m, derate 1% for every additional 100m.
Standard CE

                     Main parameters of the I5100 inverter I5100-PV-solar-pumping-inverter-model                                                                                                  I5100-PV-solar-pumping-inverter-model
